The advantage of the melting furnace made by our company are highly automation,run speed, strong and durable,save energy and environmental.

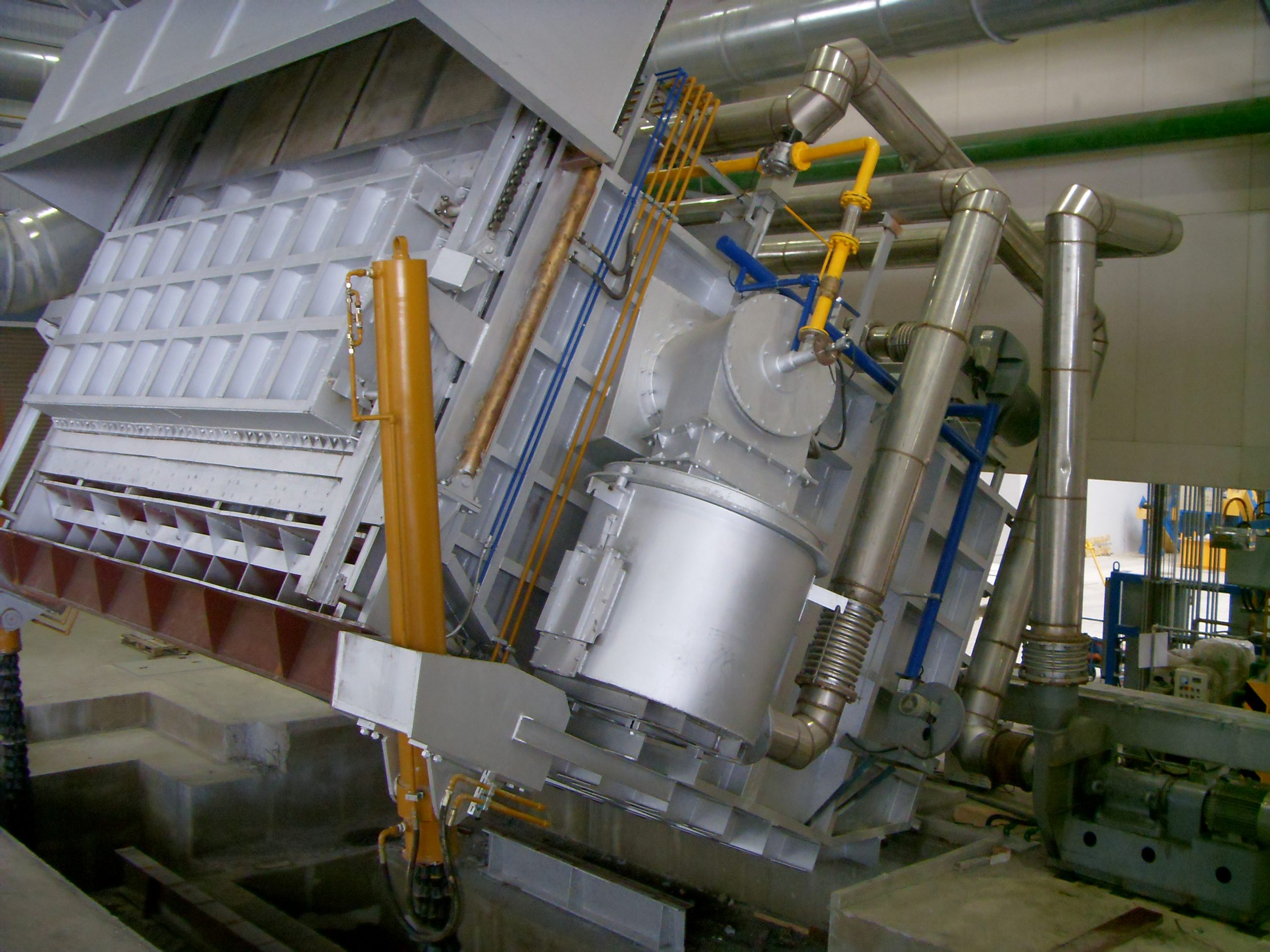

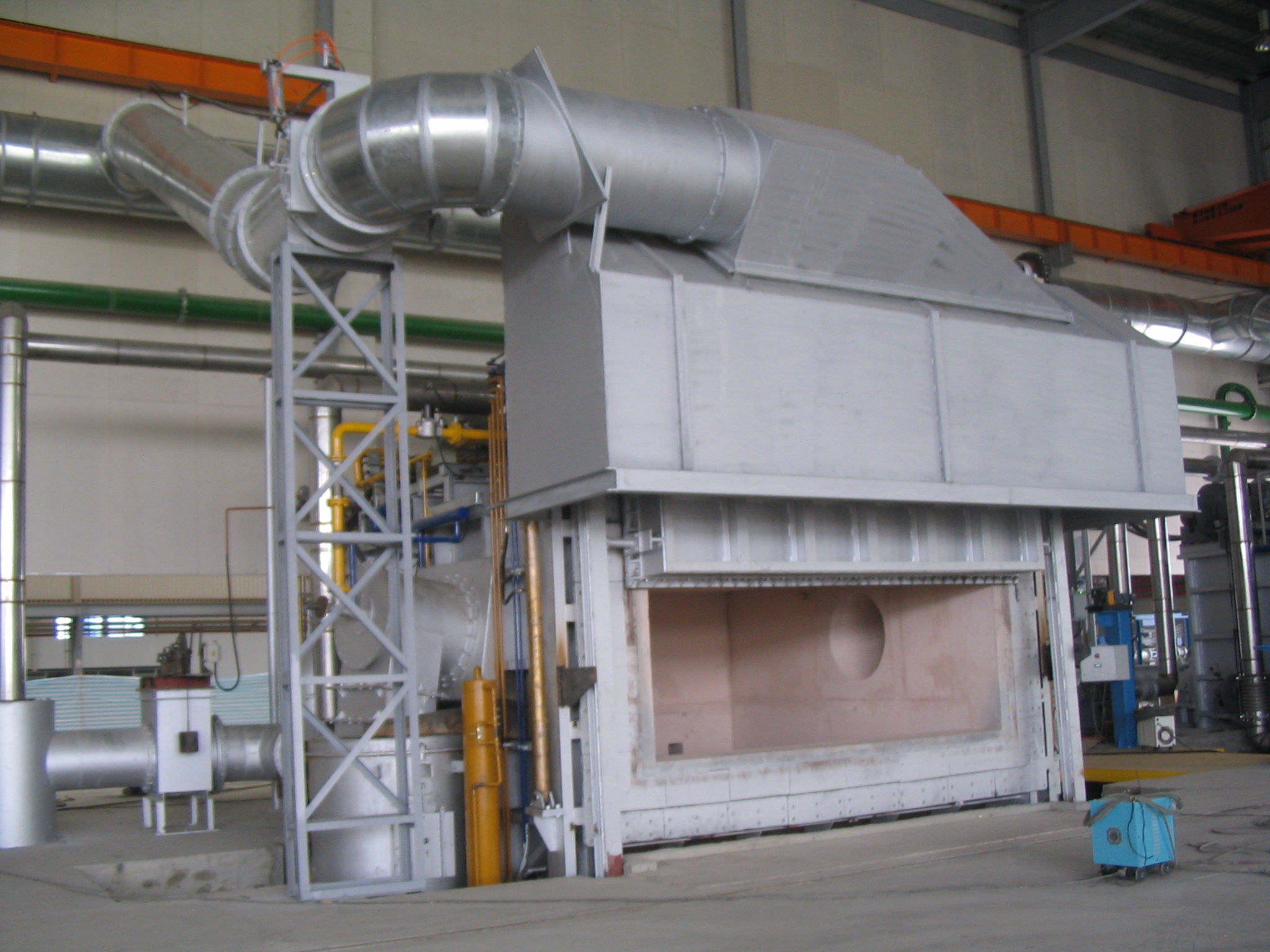

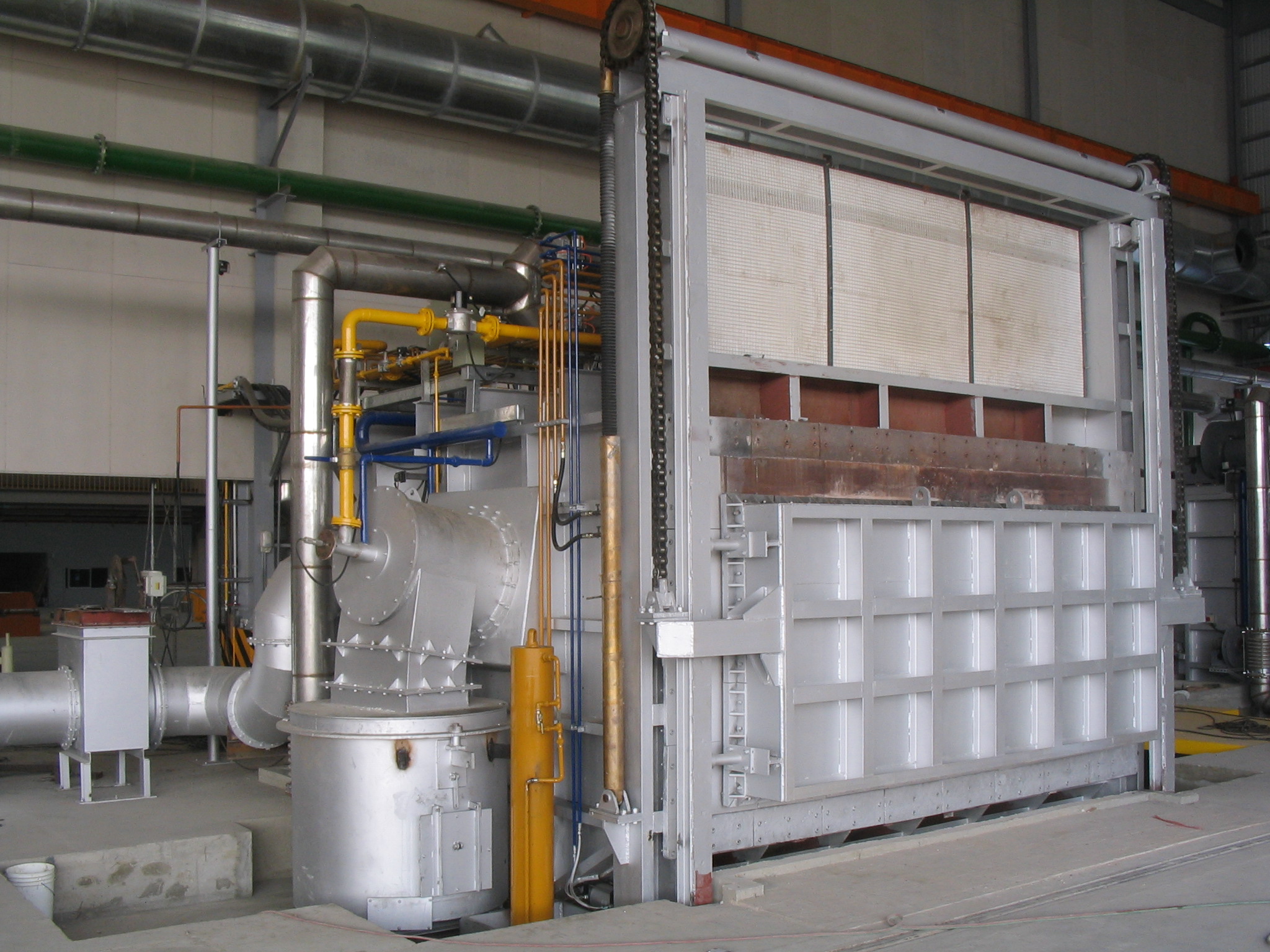

Tilting Type
The parameter of the 25 tons tilting furnace as below.
| Rated Capacity (t) | 25 t *(1+10%) | Noise | ≤80 dB |
| Melting Speed Rate(t/h) | 5 t/h – 7 t/h | Pressure Furnace | ≤15 Pa（except shift time) |
| Energy Consumption | ≤60 Nm3/t-Al | Tilting Angle | 22° Max is 25° |
| Fan Power | ～37 KW | Energy | 8400 Kcal/Nm3 |
| Regenerative Burner | Reversing Regenerative Combustion | Regenerative Nozzle | 1 Pair |

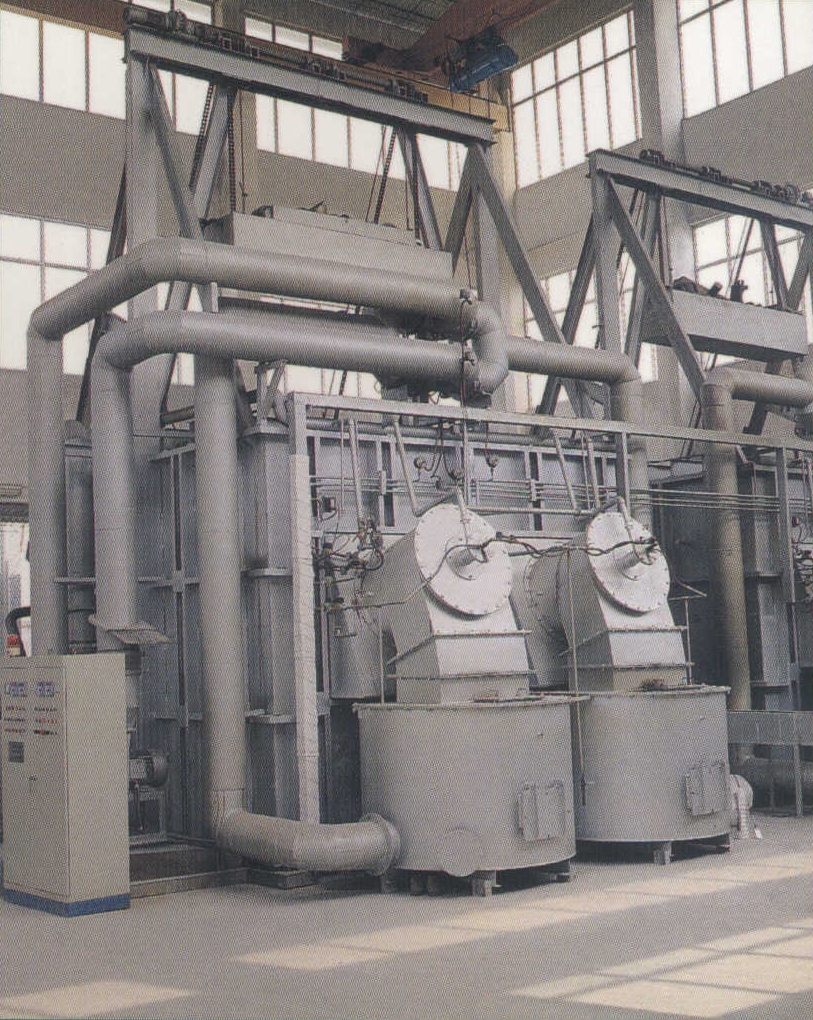

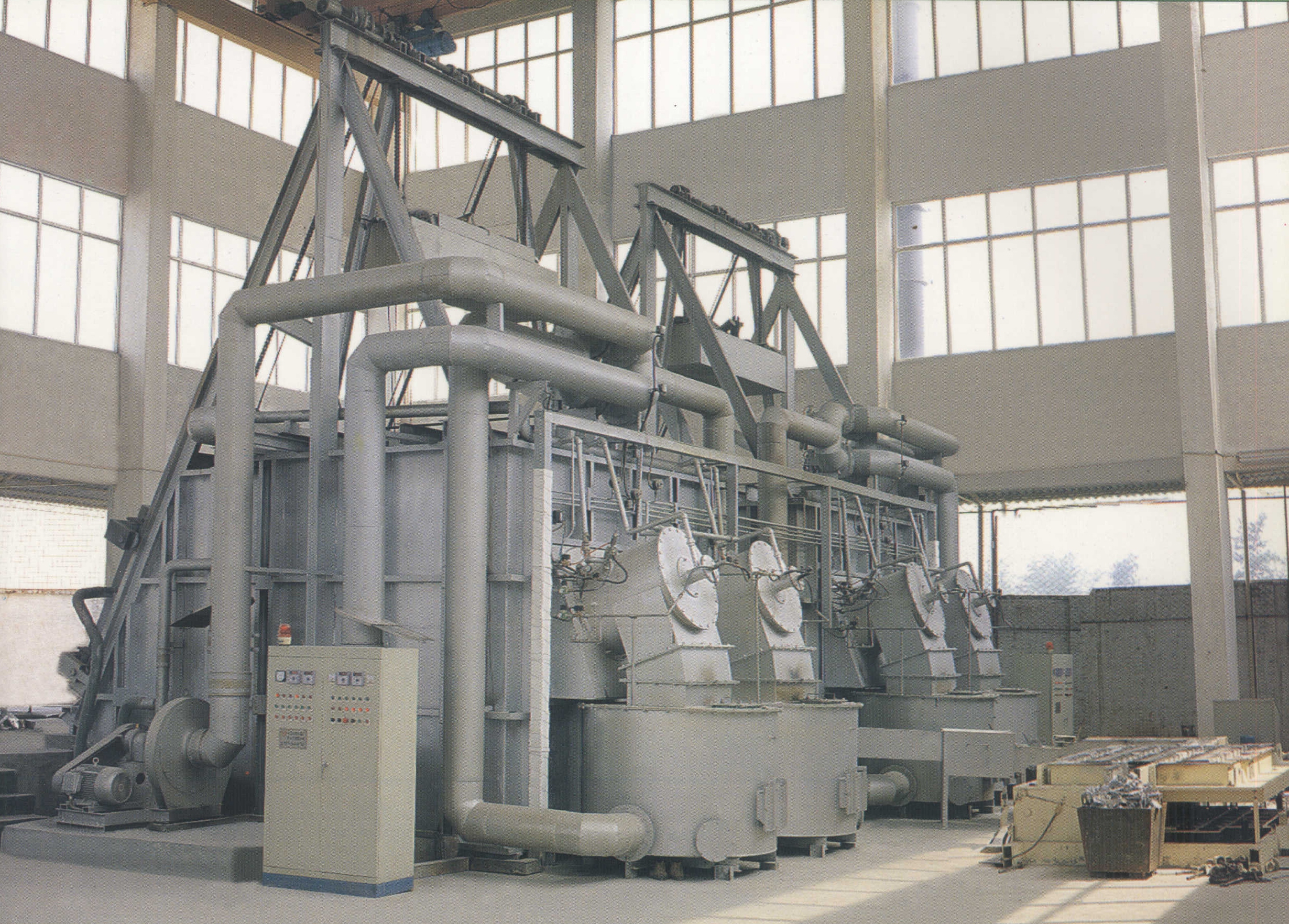

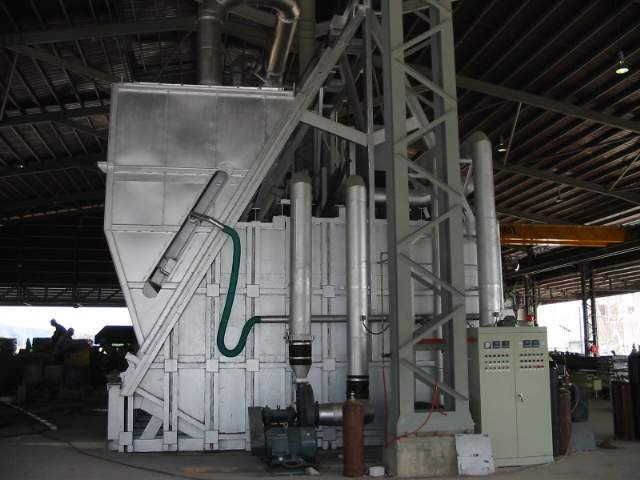

Stationary
The parameter of the 25 tons melting stationary furnace as below.
| Rated Capacity (t) | 25 t *(1+10%) | Noise | ≤95 dB |
| Melting Speed Rate (t/h) | 5.5 t/h -7 t/h | Pressure of Furnace | ≤15 Pa（except shift time) |
| Energy Consumption | ≤60 Nm3/t-Al | Energy | 8400 Kcal/Nm3 |
| Regenerative Nozzle | 1 Pair | Fan Power | ～37 KW |

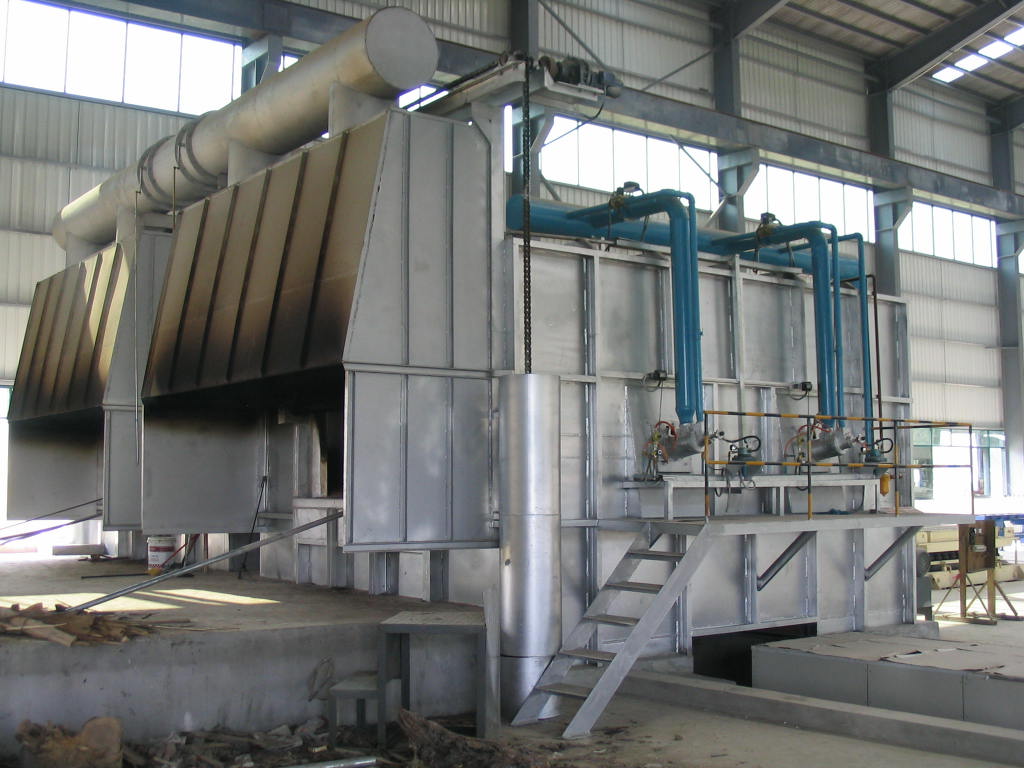

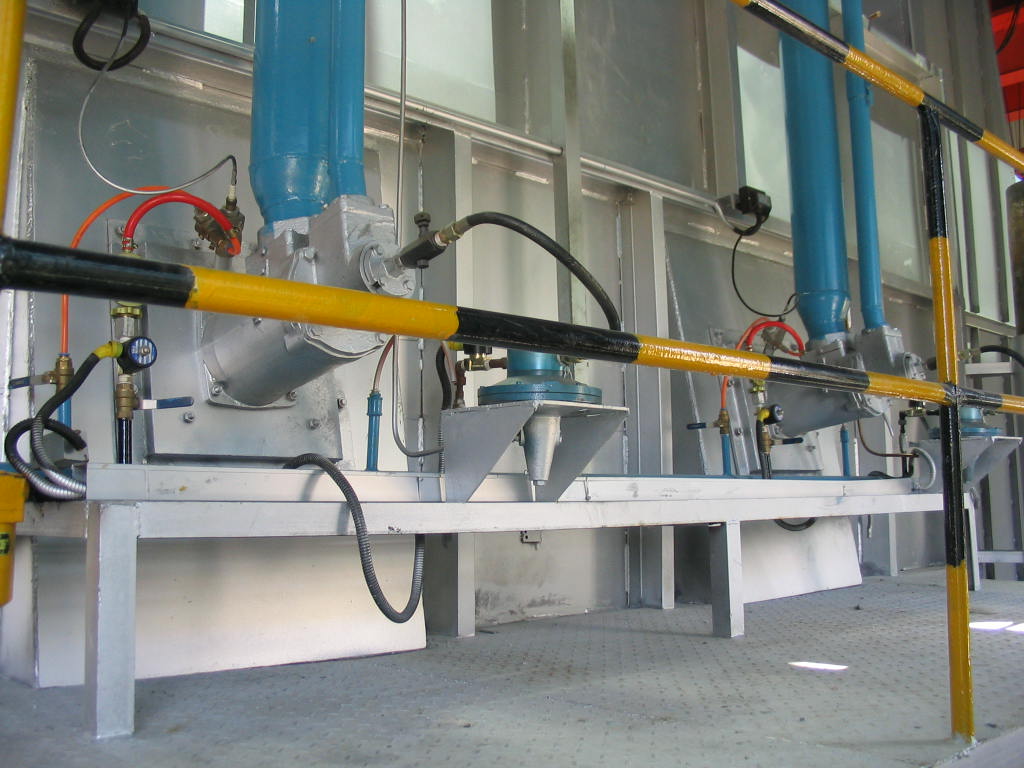

Holding Furnace
The parameter of 25 tons holding furnace as following.
| Rated Capacity (t) | 25 t×（1+10%) | Noise | ≤95 dB |
| Fan Power | ~11 KW | Pressure of Furnace | ≤15 Pa（except shift time) |
| Energy Consumption | ≤200m3/h | Energy | 8400 Kcal/Nm3 |
| Regenerative Nozzle | 1 Pair | Temperature Rising | ≥20℃/h |
